Süsinikterasest sirge küünarnuki tee meetrilise hammustusega hüdraulilised toruliitmikud
Metrilised hammustustüüpi hüdraulilised toruliitmikud, mida nimetatakse ka meetrilisteks toruliitmikeks 24° koonusega, vastavad meetrilisele standardile 2353. Neid leidub kõige sagedamini hüdraulilistes ja pneumaatilistes rakendustes ehitusseadmetes, nafta- ja gaasitööstuses, autotööstuses, lennunduses, laevaehituses ja tööstusseadmetes.
Üks eelis on nende väiksus, mis teeb need sobivaks kasutamiseks kitsastes kohtades ja vähendab hüdrosüsteemi kogumõõtmeid. Neid on ka lihtne kokku panna ja lahti võtta ning neil on kõrge vibratsioonikindlus.
Kirjeldus
Meetrilised hammustustüüpi toruliitmikud on valmistatud hammustusrõngaga, mis pingutamisel haakub toru välisküljele, pakkudes kindlat ja veekindlat ühendust. Liitmiku kolm osa on korpus, lõikerõngas (ferrule) ja mutter.
Meetrilised hammustustüüpi toruliitmikud on valmistatud süsinikterasest ja roostevabast terasest, meetriliste välisläbimõõtudega vahemikus 6 mm kuni 38 mm. Toruotsaühenduste kolme tüüpi on toru-toru, toru-emaskeere ja toru-isaskeere.
NJ pakub erinevaid meetrilisi hammustustüüpi adaptereid erineva kuju ja tihendustüübiga ning Ameerika ja Briti keermetega konversioonitüüpe järgmiselt:

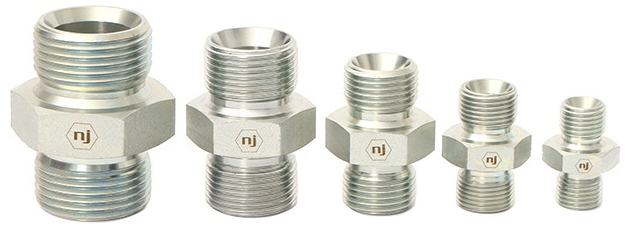

Sirge: ühendus ja reduktor, isas-isas, isas-naissoost, emas-naissoost
Lisaks meetrilistele toruliitmikele isasest isasele pakume ka meetrilisi haakega tüüpe bspp-ks o-rõnga ja kinnitusrõnga adapteriga (1CG/1DG), meetrilisi haakega tüüpe bspp-ks ed-rõngaga (1CB-WD/1DB-WD), meetrilisi haakega tüüpe meetrilisteks o-rõngasteks ja kinnitusrõngaks (1CH/1DH), JIC-tüüpi isast meetriliseks haakega tüübiks (1JC/1JD), meetrilisi haakega tüüpe meetriliseks 60° koonuseks (1CM/1DM), meetrilisi haakega tüüpe npt-isaseks (1CN/1DN), meetrilisi haakega tüüpe orb-isaseks (1CO/1DO), meetrilisi haakega tüüpe bspt-isaseks (1CT/1DT).
liitmik või reduktor

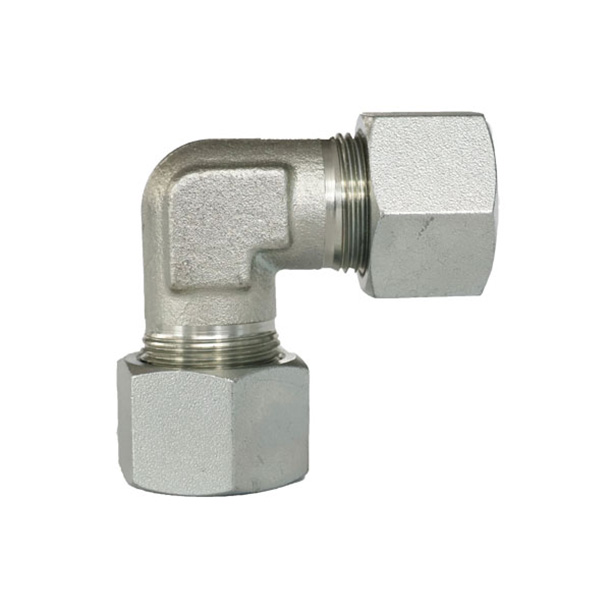

90 küünarnukk

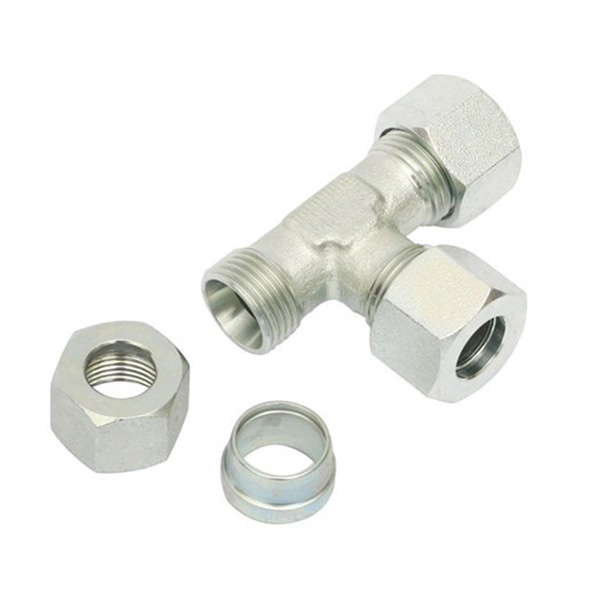

harutee ja jooksuteeTehnilised andmed
1C/1D - ISAS-ISAS MEETRILINE HAMMUTUSLIIDE
| Lõng A | Niit B | Osa nr | L | E | H1 | ||
| Kriips | DKL-i meetrika | Kriips | DKL-i meetrika | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C-08LL | 20 | 12 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C-10LL | 20 | 9 | 11 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C-12LL | 23 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C-12 | 24 | 10 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C-14 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C-16 | 27 | 13 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C-18 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C-22 | 30 | 16 | 24 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C-26 | 31 | 16 | 27 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C-30 | 35 | 20 | 32 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C-36 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C-45 | 41 | 20 | 46 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C-52 | 43 | 21 | 55 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 1C-1412 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 1C-1612 | 26 | 12 | 17 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 1C-1614 | 26 | 12 | 17 |
| -18 | M18x1.5 (12L) | -12 | M12x1.5 (06L) | 1C-1812 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 1C-1814 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -16 | M16x1.5 (10L) | 1C-1816 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 1C-2216 | 29 | 15 | 24 |
| -22 | M22x1.5 (15L) | -18 | M18x1.5 (12L) | 1C-2218 | 29 | 15 | 24 |
| -26 | M26x1.5 (18L) | -18 | M18x1.5 (12L) | 1C-2618 | 30 | 16 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 1C-2622 | 31 | 17 | 27 |
| -30 | M30x2 (22L) | -22 | M22x1.5 (15L) | 1C-3022 | 33 | 19 | 32 |
| -30 | M30x2 (22L) | -26 | M26x1.5 (18L) | 1C-3026 | 33 | 19 | 32 |
| -36 | M36x2 (28L) | -26 | M26x1.5 (18L) | 1C-3626 | 34 | 19 | 41 |
| -36 | M36x2 (28L) | -30 | M30x2 (22L) | 1C-3630 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -30 | M30x2 (22L) | 1C-4530 | 39 | 21 | 46 |
1CG/1DG - MEETRILINE HAMMUTUSKINNITUS TÜÜP X BSPP ISAS SIRGED
| Lõng A | Niit B | Osa nr | L | L1 | F | H1 | ||
| Kriips | DKL | Kriips | BSPP | mm | mm | mm | mm | |
| -8 | M08x1.0(04LL) | -2 | G1/8X28 | 1CG-0802LL | 24 | 18 | 8 | 14 |
| -10 | M10x1.0(06LL) | -2 | G1/8X28 | 1CG-1002LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.0(08LL) | -2 | G1/8X28 | 1CG-1202LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -2 | G1/8X28 | 1CG-1202 | 25 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -4 | G1/4X19 | 1CG-1204 | 30 | 23 | 12 | 19 |
| -12 | M12x1.5 (06L) | -6 | G3/8X19 | 1CG-1206 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -2 | G1 / 8-28 | 1CG-1402 | 25 | 18 | 8 | 17 |
| -14 | M14x1.5 (08L) | -4 | G1/4X19 | 1CG-1404 | 30 | 23 | 12 | 19 |
| -14 | M14x1.5 (08L) | -6 | G3/8X19 | 1CG-1406 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -8 | G1/2X14 | 1CG-1408 | 34 | 27 | 14 | 27 |
| -16 | M16x1.5 (10L) | -2 | G1/8X28 | 1CG-1602 | 27 | 20 | 8 | 17 |
| -16 | M16x1.5 (10L) | -4 | G1/4X19 | 1CG-1604 | 31 | 24 | 12 | 19 |
| -16 | M16x1.5 (10L) | -6 | G3/8X19 | 1CG-1606 | 32 | 25 | 12 | 22 |
| -16 | M16x1.5 (10L) | -8 | G1/2X14 | 1CG-1608 | 35 | 28 | 14 | 27 |
| -18 | M18x1.5 (12L) | -4 | G1/4X19 | 1CG-1804 | 31 | 24 | 12 | 22 |
| -18 | M18x1.5 (12L) | -6 | G3/8X19 | 1CG-1806 | 34 | 27 | 12 | 22 |
| -18 | M18x1.5 (12L) | -8 | G1/2X14 | 1CG-1808 | 37 | 30 | 14 | 27 |
| -22 | M22x1.5 (15L) | -4 | G1/4X19 | 1CG-2204 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -6 | G3/8X19 | 1CG-2206 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -8 | G1/2X14 | 1CG-2208 | 38 | 31 | 14 | 27 |
| -22 | M22x1.5 (15L) | -12 | G3/4X14 | 1CG-2212 | 40 | 33 | 16 | 32 |
| -26 | M26x1.5 (18L) | -8 | G1/2X14 | 1CG-2608 | 36 | 29 | 14 | 27 |
| -26 | M26x1.5 (18L) | -12 | G3/4X14 | 1CG-2612 | 39 | 32 | 16 | 32 |
| -30 | M30x2 (22L) | -8 | G1/2X14 | 1CG-3008 | 39 | 32 | 14 | 32 |
| -30 | M30x2 (22L) | -12 | G3/4X14 | 1CG-3012 | 41 | 34 | 16 | 32 |
| -30 | M30x2 (22L) | -16 | G1X11 | 1CG-3016 | 46 | 38 | 18 | 41 |
| -30 | M30x2 (22L) | -20 | G1.1/4X11 | 1CG-3020 | 48 | 41 | 20 | 50 |
| -36 | M36x2 (28L) | -12 | G3/4X14 | 1CG-3612 | 45 | 37 | 16 | 38 |
| -36 | M36x2 (28L) | -16 | G1X11 | 1CG-3616 | 46 | 38 | 18 | 41 |
| -36 | M36x2 (28L) | -20 | G1.1/4X11 | 1CG-3620 | 48 | 41 | 20 | 50 |
| -45 | M45x2 (35L) | -16 | G1X11 | 1CG-4516 | 48 | 41 | 18 | 50 |
| -45 | M45x2 (35L) | -20 | G1.1/4X11 | 1CG-4520 | 48 | 38 | 20 | 50 |
| -45 | M45x2 (35L) | -24 | G1.1/2X11 | 1CG-4524 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -20 | G1.1/4X11 | 1CG-5220 | 50 | 39 | 20 | 55 |
| -52 | M52x2 (42L) | -24 | G1.1/2X11 | 1CG-5224 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -32 | G2-11 | 1CG-5232 | 22 | 70 | ||
1JC/1JD - JIC ISEMANE X MEETRILINE HAMMUTUSTÜÜP SIRGED
| Lõng A | Niit B | Osa nr | L | E | F | H | ||
| Kriips | JIC | Kriips | DKL | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -12 | M12x1.5 | 1JC-0712 | 31 | 14 | 10 | 14 |
| -7 | 7 / 16-20 | -14 | M14x1.5 | 1JC-0714 | 30 | 14 | 10 | 16 |
| -7 | 7 / 16-20 | -16 | M16x1.5 | 1JC-0716 | 31 | 14 | 11 | 17 |
| -9 | 9 / 16-18 | -12 | M12x1.5 | 1JC-0912 | 31 | 14 | 10 | 17 |
| -9 | 9 / 16-18 | -14 | M14x1.5 | 1JC-0914 | 31 | 14 | 10 | 17 |
| -9 | 9 / 16-18 | -16 | M16x1.5 | 1JC-0916 | 31 | 14 | 11 | 17 |
| -9 | 9 / 16-18 | -18 | M18x1.5 | 1JC-0918 | 32 | 14 | 11 | 19 |
| -9 | 9 / 16-18 | -22 | M22x1.5 | 1JC-0922 | 35 | 14 | 12 | 24 |
| -12 | 3 / 4-16 | -14 | M14x1.5 | 1JC-1214 | 34 | 17 | 10 | 22 |
| -12 | 3 / 4-16 | -16 | M16x1.5 | 1JC-1216 | 35 | 17 | 11 | 22 |
| -12 | 3 / 4-16 | -18 | M18x1.5 | 1JC-1218 | 35 | 17 | 11 | 22 |
| -12 | 3 / 4-16 | -22 | M22x1.5 | 1JC-1222 | 38 | 17 | 12 | 24 |
| -14 | 7 / 8-14 | -18 | M18x1.5 | 1JC-1418 | 40 | 19 | 11 | 24 |
| -14 | 7 / 8-14 | -22 | M22x1.5 | 1JC-1422 | 41 | 19 | 12 | 24 |
| -14 | 7 / 8-14 | -26 | M26x1.5 | 1JC-1426 | 42 | 19 | 12 | 27 |
| -17 | 1.1 / 16-12 | -18 | M18x1.5 | 1JC-1718 | 42 | 22 | 11 | 30 |
| -17 | 1.1 / 16-12 | -22 | M22x1.5 | 1JC-1722 | 43 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -26 | M26x1.5 | 1JC-1726 | 43 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -30 | M30x2.0 | 1JC-1730 | 47 | 22 | 14 | 32 |
| -21 | 1.5 / 16-12 | -36 | M36x2.0 | 1JC-2136 | 48 | 23 | 14 | 41 |
| -26 | 1.5 / 8-12 | -45 | M45x2.0 | 1JC-2645 | 53 | 24 | 16 | 46 |
| -30 | 1.7 / 8-12 | -52 | M52x2.0 | 1JC-3052 | 58 | 27 | 16 | 60 |
1CN/1DN - MEETRILINE HAMMUKEERM TÜÜP X NPT ISEKEERM SIRGED
| Lõng A | Niit B | Osa nr | L | L2 | F | H1 | ||
| Kriips | DKL | Kriips | NPT | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -2 | 1 / 8x27 | 1CN-1202 | 24 | 17 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1 / 4x18 | 1CN-1204 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1 / 4x18 | 1CN-1404 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3 / 8x18 | 1CN-1406 | 30 | 23 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1 / 8x27 | 1CN-1602 | 25 | 18 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1 / 4x18 | 1CN-1604 | 31 | 24 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3 / 8x18 | 1CN-1606 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -4 | 1 / 4x18 | 1CN-1804 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3 / 8x18 | 1CN-1806 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1 / 2x14 | 1CN-1808 | 37 | 30 | 20 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3 / 8x18 | 1CN-2206 | 33 | 26 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1 / 2x14 | 1CN-2208 | 38 | 31 | 20 | 24 |
| -26 | M26x1.5 (18L) | -6 | 3 / 8x18 | 1CN-2606 | 34 | 27 | 15 | 27 |
| -26 | M26x1.5 (18L) | -8 | 1 / 2x14 | 1CN-2608 | 39 | 32 | 20 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x14 | 1CN-2612 | 39 | 32 | 20 | 30 |
| -30 | M30x2 (22L) | -8 | 1 / 2x14 | 1CN-3008 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -12 | 3 / 4x14 | 1CN-3012 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11.5 | 1CN-3016 | 47 | 40 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11.5 | 1CN-3616 | 47 | 40 | 25 | 41 |
| -36 | M36x2 (28L) | -20 | 1.1 / 4x11.5 | 1CN-3620 | 49 | 42 | 25 | 46 |
| -45 | M45x2 (35L) | -20 | 1.1 / 4x11.5 | 1CN-4520 | 51 | 14 | 25 | 46 |
| -52 | M52x2 (42L) | -24 | 1.1 / 2x11.5 | 1CN-5224 | 53 | 42 | 26 | 55 |
1CT/1DT - MEETRILINE HAMMUTUSKEERM X TÜÜP BSPT ISEKEERM SIRGED
| Lõng A | Niit B | Osa nr | L | L2 | F | H1 | ||
| Kriips | DKL | Kriips | PTSD | mm | mm | mm | mm | |
| -8 | 8x1.0 | -2 | 2001/8/28 | 1CT-0802LL | 22 | 18 | 10 | 12 |
| -10 | 10x1.0 | -2 | 2001/8/28 | 1CT-1002LL | 22 | 17 | 10 | 12 |
| -12 | 12x1.0 | -2 | 1 / 8-28 | 1CT-1202LL | 26 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -2 | 1 / 8x28 | 1CT-1202 | 28 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1 / 4x19 | 1CT-1204 | 32 | 25 | 15 | 14 |
| -14 | M14x1.5 (08L) | -2 | 1 / 8x28 | 1CT-1402 | 27 | 20 | 10 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1 / 4x19 | 1CT-1404 | 32 | 25 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3 / 8x19 | 1CT-1406 | 34 | 27 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1 / 8x28 | 1CT-1602 | 27 | 20 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1 / 4x19 | 1CT-1604 | 33 | 26 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3 / 8x19 | 1CT-1606 | 35 | 28 | 15 | 19 |
| -16 | M16x1.5 (10L) | -8 | 1 / 2x14 | 1CT-1608 | 39 | 32 | 19 | 22 |
| -18 | M18x1.5 (12L) | -4 | 1 / 4x19 | 1CT-1804 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3 / 8x19 | 1CT-1806 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1 / 2x14 | 1CT-1808 | 39 | 32 | 19 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3 / 8x19 | 1CT-2206 | 35 | 28 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1 / 2x14 | 1CT-2208 | 40 | 33 | 19 | 24 |
| -26 | M26x1.5 (18L) | -8 | 1 / 2x14 | 1CT-2608 | 41 | 33 | 19 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x14 | 1CT-2612 | 41 | 33 | 20 | 30 |
| -30 | M30x2 (22L) | -12 | 3 / 4x14 | 1CT-3012 | 43 | 35 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11 | 1CT-3016 | 50 | 42 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11 | 1CT-3616 | 52 | 45 | 26 | 38 |
| -36 | M36x2 (28L) | -20 | 1.1 / 4x11 | 1CT-3620 | 56 | 49 | 27 | 50 |
| -45 | M45x2 (35L) | -20 | 1.1 / 4x11 | 1CT-4520 | 58 | 51 | 27 | 50 |
| -52 | M52x2 (42L) | -24 | 1.1 / 2x11 | 1CT-5224 | 60 | 53 | 27 | 55 |
1CO/1DO - MEETRILINE HAMMUTUSTÜÜP X ORB ISAS, SIRGED
| Lõng A | Niit B | Osa nr | L | L2 | F | H1 | ||
| Kriips | DKL | Kriips | UNO | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -7 | 7 / 16-20 | 1CO-1207 | 25 | 18 | 9 | 14 |
| -14 | M14x1.5 (08L) | -7 | 7 / 16x20 | 1CO-1407 | 26 | 19 | 9 | 17 |
| -14 | M14x1.5 (08L) | -9 | 9 / 16x18 | 1CO-1409 | 27 | 19 | 10 | 17 |
| -14 | M14x1.5 (08L) | -12 | 3 / 4x16 | 1CO-1412 | 28 | 10 | 11 | 24 |
| -16 | M16x1.5 (10L) | -7 | 7 / 16x20 | 1CO-1607 | 27 | 20 | 9 | 17 |
| -16 | M16x1.5 (10L) | -9 | 9 / 16x18 | 1CO-1609 | 27 | 19 | 10 | 17 |
| -16 | M16x1.5 (10L) | -12 | 3 / 4x16 | 1CO-1612 | 31 | 25 | 11 | 24 |
| -16 | M16x1.5 (10L) | -14 | 7 / 8-14 | 1CO-1614 | 31 | 25 | 13 | 27 |
| -18 | M18x1.5 (12L) | -9 | 9 / 16x18 | 1CO-1809 | 28 | 21 | 10 | 19 |
| -18 | M18x1.5 (12L) | -12 | 3 / 4x16 | 1CO-1812 | 31 | 24 | 11 | 24 |
| -18 | M18x1.5 (12L) | -14 | 7 / 8x14 | 1CO-1814 | 34 | 27 | 13 | 27 |
| -18 | M18x1.5 (12L) | -17 | 1.1 / 16-12 | 1CO-1817 | 36 | 29 | 15 | 32 |
| -22 | M22x1.5 (15L) | -9 | 9 / 16-18 | 1CO-2209 | 31 | 24 | 10 | 24 |
| -22 | M22x1.5 (15L) | -12 | 3 / 4x16 | 1CO-2212 | 32 | 25 | 11 | 24 |
| -22 | M22x1.5 (15L) | -14 | 7 / 8x14 | 1CO-2214 | 35 | 28 | 13 | 27 |
| -22 | M22x1.5 (15L) | -14 | 1.1 / 16x12 | 1CO-2217 | 37 | 30 | 15 | 32 |
| -26 | M26x1.5 (18L) | -12 | 3 / 4x16 | 1CO-2612 | 33 | 26 | 11 | 27 |
| -26 | M26x1.5 (18L) | -14 | 7 / 8x14 | 1CO-2614 | 35 | 27 | 13 | 27 |
| -26 | M26x1.5 (18L) | -17 | 1.1 / 16x12 | 1CO-2617 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -12 | 3 / 4-16 | 1CO-3012 | 33 | 25 | 11 | 32 |
| -30 | M30x2 (22L) | -14 | 7 / 8x14 | 1CO-3014 | 37 | 30 | 13 | 32 |
| -30 | M30x2 (22L) | -17 | 1.1 / 16x12 | 1CO-3017 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -21 | 1.5 / 16x12 | 1CO-3021 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -17 | 1.1 / 16x12 | 1CO-3617 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -21 | 1.5 / 16x12 | 1CO-3621 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -26 | 1.5 / 8-12 | 1CO-3626 | 41 | 31 | 16 | 50 |
| -45 | M45x2 (35L) | -21 | 1.5 / 16x12 | 1CO-4521 | 43 | 33 | 15 | 50 |
| -45 | M45x2 (35L) | -26 | 1.5 / 8x12 | 1CO-4526 | 43 | 33 | 15 | 50 |
| -52 | M52x2 (42L) | -26 | 1.5 / 8x12 | 1CO-5226 | 45 | 34 | 15 | 60 |
2C/2D - METRILINE HAMBUSUUR, ISASEST NAISEKS, SIRGED
| A | B | Osa nr | L | L2 | H1 | H | ||
| Kriips | DKL | Kriips | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (08L) | -12 | M12x1.5 (08L) | 2C-12 | 43 | 36 | 12 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C-14 | 43 | 36 | 14 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C-16 | 43 | 36 | 17 | 19 |
| -18 | M16x1.5 (12L) | -18 | M16x1.5 (12L) | 2C-18 | 43 | 36 | 19 | 22 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C-22 | 43 | 36 | 24 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C-26 | 44 | 36 | 27 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C-30 | 48 | 40 | 32 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C-36 | 48 | 40 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C-45 | 61 | 50 | 46 | 50 |
| -12 | M12x1.5 (06L) | -14 | M14x1.5 (08L) | 2C-1214 | 31 | 24 | 17 | 14 |
| -12 | M12x1.5 (06L) | -16 | M16x1.5 (10L) | 2C-1216 | 32 | 25 | 19 | 19 |
| -12 | M12x1.5 (06L) | -18 | M18x1.5 (12L) | 2C-1218 | 32 | 25 | 0 | 22 |
| -12 | M12x1.5 (06L) | -26 | M26x1.5 (18L) | 2C-1226 | 36 | 28 | 0 | 32 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 2C-1412 | 31 | 24 | 12 | 17 |
| -14 | M14x1.5 (08L) | -16 | M16x1.5 (10L) | 2C-1416 | 32 | 0 | 0 | 19 |
| -14 | M14x1.5 (08L) | -18 | M18x1.5 (12L) | 2C-1418 | 32 | 0 | 0 | 22 |
| -14 | M14x1.5 (08L) | -22 | M22x1.5 (15L) | 2C-1422 | 36 | 0 | 0 | 27 |
| -14 | M14x1.5 (08L) | -26 | M26x1.5 (18L) | 2C-1426 | 36 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 2C-1612 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 2C-1614 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -18 | M18x1.5 (12L) | 2C-1618 | 33 | 0 | 0 | 22 |
| -16 | M16x1.5 (10L) | -22 | M22x1.5 (15L) | 2C-1622 | 37 | 0 | 0 | 27 |
| -16 | M16x1.5 (10L) | -26 | M26x1.5 (18L) | 2C-1626 | 37 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -30 | M30x2 (22L) | 2C-1630 | 40 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -22 | M22x1.5 (15L) | 2C-1822 | 0 | 0 | 0 | 27 |
| -18 | M18x1.5 (12L) | -26 | M26x1.5 (18L) | 2C-1826 | 0 | 0 | 0 | 32 |
| -18 | M18x1.5 (12L) | -30 | M30x2 (22L) | 2C-1830 | 0 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -36 | M36x2 (28L) | 2C-1836 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 2C-2216 | 37 | 30 | 19 | 27 |
| -22 | M22x1.5 (15L) | -26 | M26x1.5 (18L) | 2C-2226 | 0 | 0 | 0 | 32 |
| -22 | M22x1.5 (15L) | -30 | M30x2 (22L) | 2C-2230 | 0 | 0 | 0 | 36 |
| -22 | M22x1.5 (15L) | -36 | M36x2 (28L) | 2C-2236 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -45 | M45x2 (35L) | 2C-2245 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -30 | M30x2 (22L) | 2C-2630 | 0 | 0 | 0 | 36 |
| -26 | M26x1.5 (18L) | -36 | M36x2 (28L) | 2C-2636 | 0 | 0 | 0 | 41 |
| -26 | M26x1.5 (18L) | -45 | M45x2 (35L) | 2C-2645 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -52 | M52x2 (42L) | 2C-2652 | 0 | 0 | 0 | 60 |
| -30 | M30x2 (22L) | -36 | M36x2 (28L) | 2C-3036 | 0 | 0 | 0 | 41 |
| -30 | M30x2 (22L) | -45 | M45x2 (35L) | 2C-3045 | 0 | 0 | 0 | 50 |
| -30 | M30x2 (22L) | -52 | M52x2 (42L) | 2C-3052 | 0 | 0 | 0 | 60 |
| -36 | M36x2 (28L) | -45 | M45x2 (35L) | 2C-3645 | 0 | 0 | 0 | 50 |
| -36 | M36x2 (28L) | -52 | M52x2 (42L) | 2C-3652 | 0 | 0 | 0 | 60 |
| -45 | M45x2 (35L) | -52 | M52x2 (42L) | 2C-4552 | 0 | 0 | 0 | 60 |
| -52 | M52x2 (42L) | -45 | M45x2 (35L) | 2C-5245 | 54 | 43 | 50 | 50 |
3C/3D - NAISESEST NAISESSE, MEETRILINE, SIRGED TÜÜP
| Lõng A | Niit B | Osa nr | L | H | H1 | ||
| Kriips | DKOL | Kriips | DKOL | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 3C-12 | 33 | 14 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 3C-14 | 33 | 17 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 3C-16 | 34 | 19 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 3C-1614 | 34 | 19 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 3C-18 | 34 | 22 | 22 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 3C-1814 | 34 | 22 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 3C-22 | 39 | 27 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 3C-2622 | 40 | 32 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 3C-26 | 38 | 32 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 3C-30 | 44 | 36 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 3C-36 | 48 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 3C-45 | 52 | 50 | 50 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 3C-52 | 57 | 60 | 60 |
1C9/1D9 - ISAS-ISAS MEETRILINE HAMMUTUSLIIST TÜÜP 90 KÜÜNARNUKK
| Lõng A | Niit B | Osa nr | L1 | L2 | S1 | ||
| Kriips | DKL-i meetrika | Kriips | DKL-i meetrika | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C9-08LL | 15 | 11 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C9-10LL | 15 | 10 | 9 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C9-12LL | 17 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C9-12 | 19 | 12 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C9-14 | 21 | 14 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C9-16 | 22 | 15 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C9-18 | 24 | 17 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C9-22 | 28 | 21 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C9-26 | 31 | 24 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C9-30 | 35 | 28 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C9-36 | 38 | 31 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C9-45 | 45 | 35 | 41 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C9-52 | 51 | 40 | 50 |
2C9/2D9 - ISASE JA NAISE ÜHENDUSLIK MEETRILINE HAMBUSS, TÜÜP 90 KÜÜNARNUKK
| A | B | Osa nr | L1 | L2 | L3 | S1 | ||
| Kriips | DKL | Kriips | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 2C9-12 | 19 | 12 | 26 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C9-14 | 21 | 14 | 28 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C9-16 | 22 | 15 | 29 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 2C9-18 | 24 | 17 | 30 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C9-22 | 28 | 21 | 33 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C9-26 | 31 | 24 | 36 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C9-30 | 35 | 28 | 39 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C9-36 | 38 | 31 | 42 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C9-45 | 45 | 35 | 51 | 41 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 2C9-52 | 51 | 40 | 60 | 50 |
AC/AD - METRILINE HAKKUMISTÜÜP T-MUDEL
| A | B | C | Osa nr | E | F | G | S1 | |||
| Kriips | DKL | Kriips | DKL | Kriips | DKL | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | AC-12 | 19 | 19 | 19 | 12 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | AC-14 | 21 | 21 | 21 | 12 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | AC-16 | 22 | 22 | 22 | 14 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | AC-18 | 24 | 24 | 24 | 17 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | AC-22 | 28 | 28 | 28 | 19 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | AC-26 | 31 | 31 | 31 | 24 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | AC-30 | 35 | 35 | 35 | 27 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | AC-36 | 38 | 38 | 38 | 36 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | AC-45 | 45 | 45 | 45 | 41 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | AC-52 | 51 | 51 | 51 | 50 |

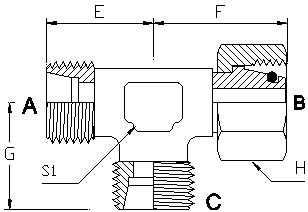

BC/BD - METRILINE HAMMUSTÜÜP, ISA JA NAISED ÜHENDUSES
| A | B | C | Osa nr | E | F | G | S1 | H | |||
| Kriips | DKL | Kriips | DKL | Kriips | DKOL | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | BC-12 | 19 | 19 | 26 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | BC-14 | 21 | 21 | 28 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | BC-16 | 22 | 22 | 29 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | BC-18 | 24 | 24 | 30 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | BC-22 | 28 | 28 | 33 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | BC-26 | 31 | 31 | 36 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | BC-30 | 35 | 35 | 39 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | BC-36 | 38 | 38 | 42 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | BC-45 | 45 | 45 | 51 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | BC-52 | 51 | 51 | 56 | 50 | 60 |
CC/CD - METRILINE HAMMUSTÜÜP T-LIIT
| A | B | C | Osa nr | E | F | G | S1 | H | |||
| Kriips | DKL | Kriips | DKL | Kriips | DKL | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | CC-12 | 19 | 26 | 19 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08l) | CC-14 | 21 | 28 | 21 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | CC-16 | 22 | 29 | 22 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | CC-18 | 24 | 30 | 24 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | CC-22 | 28 | 33 | 28 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | CC-26 | 31 | 36 | 31 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | CC-30 | 35 | 39 | 35 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | CC-36 | 38 | 42 | 38 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | CC-45 | 45 | 51 | 45 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | CC-52 | 51 | 56 | 51 | 50 | 60 |
Märkus: Juhul kui olete huvitatud adapteri tellimisest komplektina koos lõikerõnga ja mutriga, on vaja meie tootekoodi järele lisada järelliide "RN", näiteks "1C-RN/1D-RN".
Detailid
1. Valmis: standardne tsingimine (Cr3, hõbe), nikeldamine ja tsinknikkeldamine (see võib läbida 700–1000 tundi soolalahuse pihustustesti nõudeid).
2. Saadaval olevad suurused: M12x1.5 kuni M52x2.
3. Rõhk: alates 5000 PSI kuni 10,000 XNUMX PSI, saadaval on kõrge rõhk.
4. Proovid: enne proovitellimuse esitamist saame testimiseks pakkuda 2-3 tükki tasuta näidiseid.
5. MITMEKORDNE KOGUS: Enamik suurusi on meil laos olemas, seega kindlat suurust pole; kui mitte, siis on minimaalne tellimiskogus 500 tükki.
6. Materjal: messing, roostevaba teras (304 või 316L), süsinikteras (#45 teras).
7. Standard: DIN/EATON standard või vastavalt joonisele ja näidistele (OEM).
8. Tarne: 30–45 päeva tootmistellimuste ja 7–15 tööpäeva laoseisude puhul.
