JIC hüdraulilised liitmikud
JIC-liitmik, tuntud ka kui Joint Industry Councili liitmik, on keermetüüp, mida tavaliselt kasutatakse hüdraulilistes vedelike jõusüsteemides. See on standardiseeritud keermetüüp, millel on 37-kraadine laienemisnurk ja mis on laialdaselt tunnustatud oma töökindluse ja paigaldamise lihtsuse poolest.
Kirjeldus
See toode on JIC (või Joint Industry Council) liitmik, mille mõlemad otsad on JIC-keermega, JIC on määratletud standardite SAE J514 ja MIL-DTL-18866 järgi ning on 37-kraadise nurga all oleva laieneva istumispinnaga töödeldud laieneva liitmiku tüüp.
Neid kasutatakse ja toodetakse tavaliselt messingist, süsinikterasest ja roostevabast terasest. JIC hüdraulilised liitmikud on levinud enamikus hüdraulilistes jõusüsteemides. JIC-keere jaguneb ka isas-JIC- ja emas-JIC-keermeks, millel on pöördmutter.
JIC-i saab laialdaselt sobitada erinevate niitidega, näiteks:
JIC-JIC hüdraulilised adapterid /1J

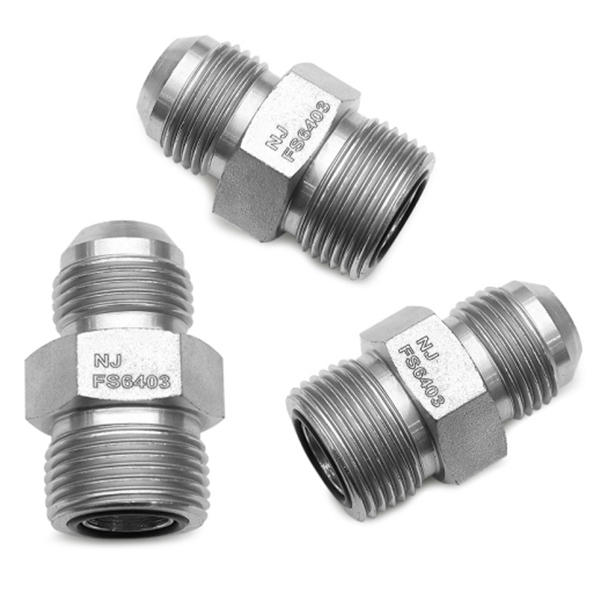

JIC-ORB (O-rõnga ülemine osa) hüdraulilised adapterid/1JO

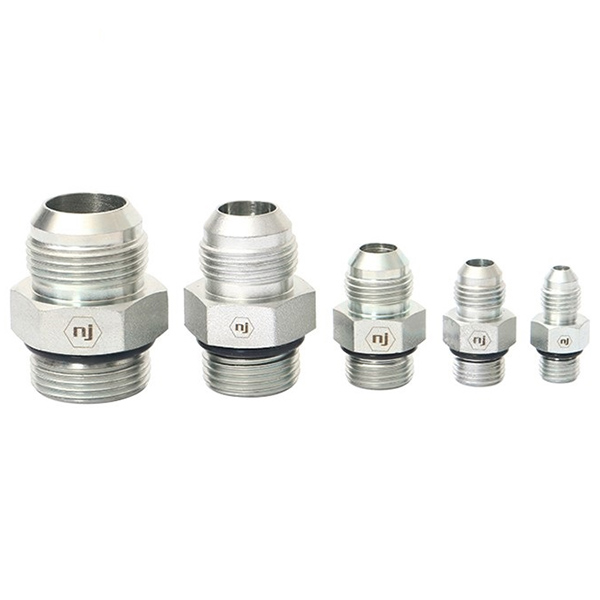

JIC-ORFS (O-rõngaga tihendus) hüdraulilised adapterid/1JF

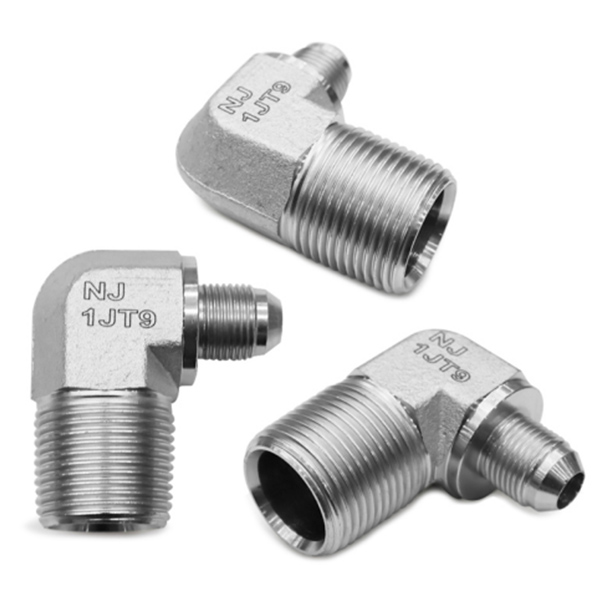

JIC kuni NPTF 90-kraadise küünarnuki hüdraulilised adapterid/1JN9

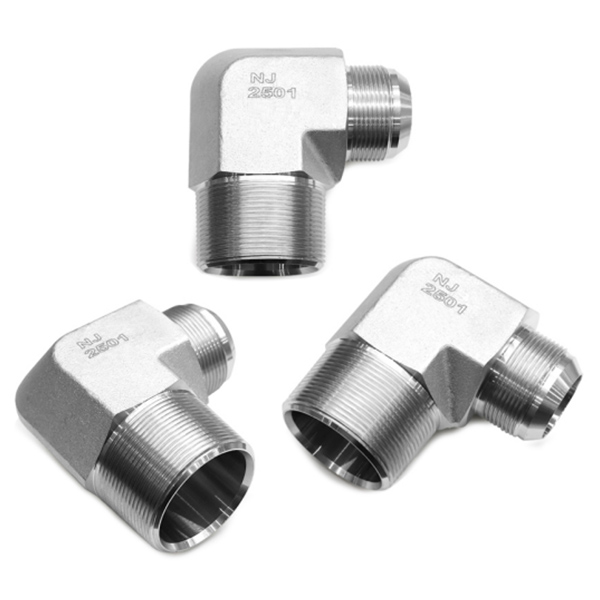

JIC-BSPT 90-kraadise küünarnuki hüdraulilised adapterid/1JT9
JIC-meetrilise hüdraulilise adapteri/1JM
JIC-korgid /0304C

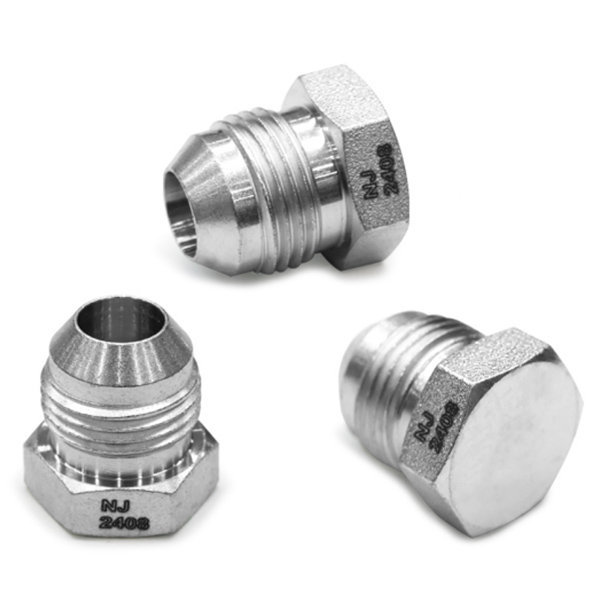

JIC-pistikud/2408

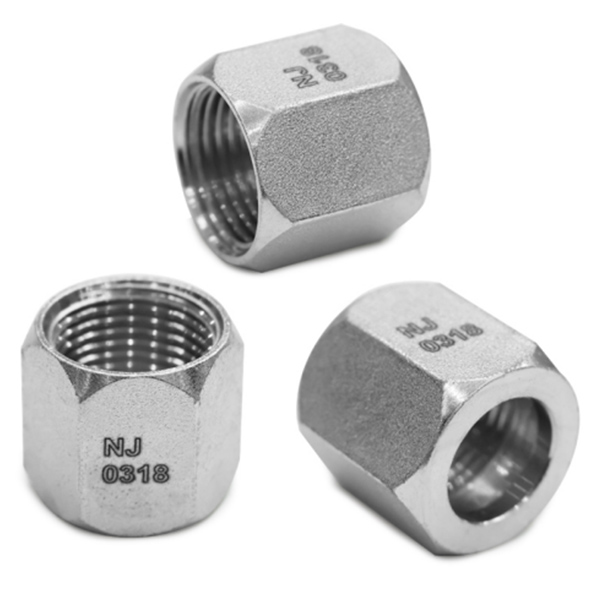

JIC-toru mutter/0318

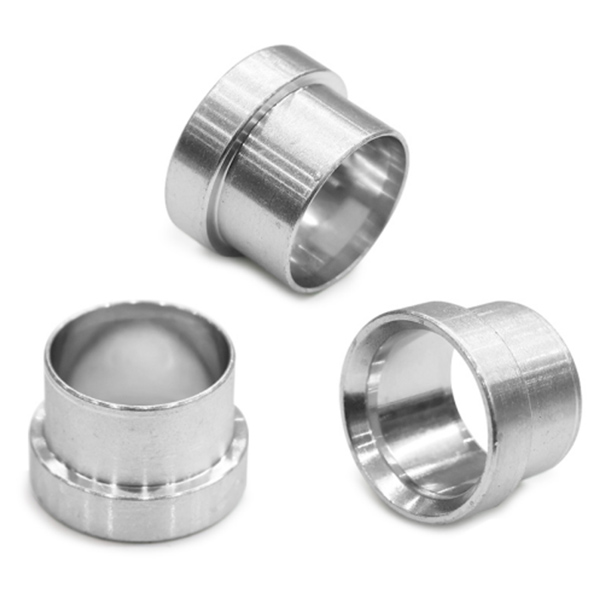

JIC-toruhülss/0319Tehnilised andmed
1. JIC-JIC hüdraulilised adapterid /1J
| A | B | Osa nr | L | E | F | H1 | ||
| Kriips | JIC | Kriips | JIC | mm | mm | mm | mm | |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1J-0606 | 31 | 12 | 12 | 11.1 |
| -7 | 7 / 16-20 | -7 | 7. juuli 16 | 1J-0707 | 35 | 14 | 14 | 12.7 |
| -8 | 2001-2-20 | -7 | 7. juuli 16 | 1J-0807 | 35 | 14 | 14 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1J-0808 | 35 | 14 | 14 | 14.3 |
| -9 | 9 / 16-18 | -9 | 7 / 16-20 | 1J-0907 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1J-0908 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1J-0909 | 36 | 14 | 14 | 15.9 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1J-1207 | 38 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1J-1209 | 39 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1J-1212 | 41 | 17 | 17 | 20.6 |
| -14 | 2007-8-14 | -7 | 7. juuli 16 | 1J-1407 | 43 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -8 | 1 / 2-20 | 1J-1408 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1J-1409 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1J-1412 | 45 | 19 | 17 | 23.8 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1J-1414 | 48 | 19 | 19 | 23.8 |
| -17 | 1.1 / 16-12 | -7 | 7 / 16-20 | 1J-1707 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1J-1709 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -12 | 7 / 16-20 | 1J-1712 | 50 | 22 | 17 | 28.6 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1J-1714 | 52 | 22 | 19 | 28.6 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1J-1717 | 55 | 22 | 22 | 28.6 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1J-1917 | 55 | 23 | 22 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1J-1919 | 56 | 23 | 23 | 31.8 |
| -21 | 1.5 / 16-12 | -7 | 7 / 16-20 | 1J-2107 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -9 | 9 / 16-18 | 1J-2109 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1J-2112 | 51 | 23 | 17 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1J-2114 | 53 | 23 | 19 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1J-2117 | 56 | 23 | 22 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1J-2121 | 57 | 23 | 23 | 34.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1J-2617 | 59 | 24 | 22 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1J-2621 | 61 | 24 | 23 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1J-2626 | 62 | 24 | 24 | 42.9 |
| -30 | 1.7 / 8-12 | -17 | 1.1 / 16-12 | 1J-3017 | 64 | 28 | 22 | 50.8 |
| -30 | 1.7 / 8-12 | -21 | 1.5 / 16-12 | 1J-3021 | 66 | 28 | 23 | 50.8 |
| -30 | 1.7 / 8-12 | -26 | 1.5 / 8-12 | 1J-3026 | 67 | 28 | 24 | 50.8 |
| -30 | 1.7 / 8-12 | -30 | 1.7 / 8-12 | 1J-3030 | 70 | 28 | 28 | 50.8 |
| -40 | 2.1 / 2-12 | -21 | 1.5 / 16-12 | 1J-4021 | 76 | 34 | 23 | 66.7 |
| -40 | 2.1 / 2-12 | -26 | 1.5 / 8-12 | 1J-4026 | 77 | 34 | 24 | 66.7 |
| -40 | 2.1 / 2-12 | -30 | 1.7 / 8-12 | 1J-4030 | 80 | 34 | 28 | 66.7 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1J-4040 | 86 | 34 | 34 | 66.7 |
2. JIC-ORB (O-rõnga ülemine osa) hüdraulilised adapterid/1JO
| A | B | Osa nr | L | E | F | H1 | ||
| Kriips | JIC | Kriips | UNO | mm | mm | mm | mm | |
| -5 | 5 / 16-24 | -7 | 7 / 16-20 | 1JO-0507 | 29 | 12 | 9 | 14.3 |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1JO-0606 | 28 | 12 | 8 | 12.7 |
| -6 | 2003-8-24 | -7 | 7 / 16-20 | 1JO-0607 | 29 | 12 | 9 | 14.3 |
| -7 | 7 / 16-20 | -7 | 7 / 16-20 | 1JO-0707 | 29 | 14 | 9 | 14.3 |
| -7 | 7 / 16-20 | -8 | 1 / 2-20 | 1JO-0708 | 29 | 14 | 9 | 15.9 |
| -7 | 7 / 16-20 | -9 | 9 / 16-18 | 1JO-0709 | 30 | 14 | 10 | 17.5 |
| -7 | 7 / 16-20 | -12 | 3 / 4-16 | 1JO-0712 | 33 | 14 | 11 | 22.2 |
| -7 | 7 / 16-20 | -14 | 7 / 8-14 | 1JO-0714 | 38 | 14 | 13 | 25.4 |
| -7 | 7 / 16-20 | -17 | 1.1 / 16-12 | 1JO-0717 | 42 | 14 | 15 | 31.8 |
| -7 | 7 / 16-20 | -21 | 1.5 / 16-12 | 1JO-0721 | 43 | 14 | 15 | 38.1 |
| -8 | 2001-2-20 | -7 | 7 / 16-20 | 1JO-0807 | 31 | 14 | 9 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1JO-0808 | 29 | 14 | 9 | 15.8 |
| -8 | 2001-2-20 | -9 | 9 / 16-18 | 1JO-0809 | 33 | 14 | 9 | 17.5 |
| -8 | 2001-2-20 | -12 | 3 / 4-16 | 1JO-0812 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -7 | 7 / 16-20 | 1JO-0907 | 29 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1JO-0908 | 30 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1JO-0909 | 30 | 14 | 10 | 17.5 |
| -9 | 9 / 16-18 | -12 | 3 / 4-16 | 1JO-0912 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -14 | 7 / 8-14 | 1JO-0914 | 37 | 14 | 13 | 25.4 |
| -9 | 9 / 16-18 | -17 | 1.1 / 16-12 | 1JO-0917 | 40 | 14 | 15 | 31.8 |
| -9 | 9 / 16-18 | -21 | 1.5 / 16-12 | 1JO-0921 | 43 | 14 | 15 | 38.1 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1JO-1207 | 34 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -8 | 1 / 2-20 | 1JO-1208 | 38 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1JO-1209 | 35 | 17 | 10 | 22.2 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1JO-1212 | 36 | 17 | 11 | 22.2 |
| -12 | 2003-4-16 | -14 | 7 / 8-14 | 1JO-1214 | 40 | 17 | 13 | 25.4 |
| -12 | 2003-4-16 | -17 | 1.1 / 16-12 | 1JO-1217 | 43 | 17 | 15 | 31.8 |
| -12 | 2003-4-16 | -21 | 1.5 / 16-12 | 1JO-1221 | 43 | 17 | 15 | 38.1 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1JO-1409 | 43 | 19 | 9 | 25.4 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1JO-1412 | 39 | 19 | 11 | 25.4 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1JO-1414 | 43 | 19 | 13 | 25.4 |
| -14 | 2007-8-14 | -17 | 1.1 / 16-12 | 1JO-1417 | 46 | 19 | 15 | 31.8 |
| -14 | 2007-8-14 | -21 | 1.5 / 16-12 | 1JO-1421 | 46 | 19 | 15 | 38.1 |
| -14 | 2007-8-14 | -26 | 1.5 / 8-12 | 1JO-1426 | 50 | 19 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1JO-1709 | 47 | 22 | 9 | 31.8 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-16 | 1JO-1712 | 43 | 22 | 11 | 31.8 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1JO-1714 | 45 | 22 | 13 | 31.8 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1717 | 48 | 22 | 15 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1719 | 48 | 22 | 15 | 34.9 |
| -17 | 1.1 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1721 | 48 | 22 | 15 | 38.1 |
| -17 | 1.1 / 16-12 | -26 | 1.5 / 8-12 | 1JO-1726 | 48 | 22 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -30 | 1.7 / 8-12 | 1JO-1730 | 55 | 22 | 15 | 54 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1917 | 51 | 23 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1919 | 51 | 23 | 15 | 34.9 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1921 | 51 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1JO-2112 | 51 | 23 | 11 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1JO-2114 | 47 | 23 | 13 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1JO-2117 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JO-2119 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1JO-2121 | 49 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -26 | 1.5 / 8-12 | 1JO-2126 | 55 | 23 | 15 | 47.6 |
| -21 | 1.5 / 16-12 | -30 | 1.7 / 8-12 | 1JO-2130 | 56 | 23 | 15 | 54 |
| -26 | 1.5 / 8-12 | -14 | 7 / 8-14 | 1JO-2614 | 57 | 24 | 13 | 42.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1JO-2617 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1JO-2621 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1JO-2626 | 55 | 24 | 15 | 47.6 |
| -26 | 1.5 / 8-12 | -30 | 1.7 / 8-12 | 1JO-2630 | 55 | 24 | 15 | 54 |
| -30 | 1.7-8-12 | -26 | 1.5 / 8-12 | 1JO-3026 | 60 | 28 | 15 | 54 |
| -30 | 1.7-8-12 | -30 | 1.7 / 8-12 | 1JO-3030 | 58 | 28 | 15 | 54 |
| -30 | 1.7 / 8-12 | -40 | 2.1 / 2-12 | 1JO-3040 | 64 | 28 | 15 | 69.9 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1JO-4040 | 66 | 34 | 15 | 69.9 |
3. JIC-ORFS (O-rõngaga tihend) hüdraulilised adapterid/1JF
| Lõng A | Niit B | Osa nr | L | E | F | H1 | ||
| Kriips | JIC | Kriips | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | 1-14 | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | 1-14 | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
4. JIC-NPTF 90-kraadise küünarnuki hüdraulilised adapterid/1JN9
| Lõng A | Niit B | Osa nr | E | F | S1 | |||
| Kriips | JIC | Kriips | NPT | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-27 | 1JN9-0702 | 25 | 21 | 11 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-18 | 1JN9-0704 | 27 | 26 | 14 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-18 | 1JN9-0706 | 30 | 31 | 19 | |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JN9-0708 | 31 | 37 | 22 | |
| -07 | 7 / 16-20 | -12 | 3 / 4-14 | 1JN9-0712 | 33 | 44 | 27 | |
| -08 | 1 / 2-20 | -02 | 1 / 8-27 | 1JN9-0802 | 27 | 24 | 14 | |
| -08 | 1 / 2-20 | -04 | 1 / 4-18 | 1JN9-0804 | 27 | 26 | 14 | |
| -08 | 1 / 2-20 | -06 | 3 / 8-18 | 1JN9-0806 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1JN9-0902 | 27 | 21 | 14 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1JN9-0904 | 27 | 26 | 14 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1JN9-0906 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JN9-0908 | 32 | 37 | 22 | |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JN9-0912 | 33 | 40 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-18 | 1JN9-1204 | 32 | 29 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-18 | 1JN9-1206 | 32 | 31 | 19 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JN9-1208 | 35 | 37 | 22 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JN9-1212 | 38 | 44 | 27 | |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JN9-1216 | 39 | 50 | 33 | |
| -14 | 7 / 8-14 | -04 | 1 / 4-18 | 1JN9-1404 | 38 | 34 | 22 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-18 | 1JN9-1406 | 38 | 33 | 22 | |
5. JIC-BSPP 45-kraadise küünarnuki hüdraulilised adapterid/1JG4
| A | B | Osa nr | E | F | S1 | H | |||
| Kriips | JIC | Kriips | BSPP | mm | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JG4-0702 | 18 | 22 | 11 | 14 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JG4-0704 | 22 | 26 | 14 | 19 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JG4-0706 | 23 | 33 | 19 | 22 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JG4-0904 | 22 | 28 | 14 | 19 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JG4-0906 | 23 | 32 | 19 | 22 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JG4-0908 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JG4-1204 | 25 | 31 | 19 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JG4-1206 | 25 | 32 | 19 | 22 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JG4-1208 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-12 | 1JG4-1212 | 30 | 37 | 27 | 32 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JG4-1406 | 28 | 33 | 22 | 22 | |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JG4-1408 | 28 | 36 | 22 | 27 | |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JG4-1412 | 32 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JG4-1708 | 33 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JG4-1712 | 33 | 37 | 27 | 32 | |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JG4-1716 | 35 | 44 | 33 | 41 | |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JG4-2116 | 42 | 44 | 33 | 41 | |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JG4-2620 | 40 | 47 | 41 | 50 | |
| -30 | 1.7 / 8-12 | -24 | 1.1.2-11 | 1JG4-3024 | 45 | 51 | 48 | 55 | |
6. JIC-BSPT 90-kraadise küünarnuki hüdraulilised adapterid/1JT9
| A | B | Osa nr | E | F | S1 | ||
| Kriips | JIC | Kriips | PTSD | mm | mm | mm | |
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JT9-0702 | 25 | 21 | 11 |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JT9-0704 | 27 | 26 | 14 |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JT9-0706 | 28 | 28.4 | 19 |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JT9-0708 | 30 | 36 | 22 |
| -08 | 1 / 2-20 | -02 | 1 / 8-28 | 1JT9-0802 | 27 | 24 | 14 |
| -08 | 1 / 2-20 | -04 | 1 / 4-19 | 1JT9-0804 | 27 | 26 | 14 |
| -08 | 1 / 2-20 | -06 | 3 / 8-19 | 1JT9-0806 | 28 | 28.4 | 19 |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1JT9-0902 | 27 | 24 | 14 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JT9-0904 | 27 | 26 | 14 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JT9-0906 | 29 | 29.0 | 19 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JT9-0908 | 32 | 36 | 22 |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JT9-0912 | 35 | 44 | 27 |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JT9-1204 | 32 | 28 | 19 |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JT9-1206 | 32 | 31 | 19 |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JT9-1208 | 35 | 36 | 22 |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JT9-1212 | 38 | 43 | 27 |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JT9-1216 | 43 | 50 | 33 |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JT9-1406 | 38 | 32 | 22 |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JT9-1408 | 37 | 36 | 22 |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JT9-1412 | 41 | 43 | 27 |
| -14 | 7 / 8-14 | -16 | 1-11 | 1JT9-1416 | 45 | 50 | 33 |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JT9-1708 | 44 | 40 | 27 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JT9-1712 | 44 | 43 | 27 |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JT9-1716 | 48 | 50 | 33 |
| -17 | 1.1 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-1720 | 49 | 57 | 41 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-14 | 1JT9-2112 | 49 | 48 | 33 |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JT9-2116 | 49 | 50 | 33 |
| -21 | 1.5 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-2120 | 51 | 57 | 41 |
| -26 | 1.5 / 8-12 | -16 | 1-11 | 1JT9-2616 | 56 | 57 | 41 |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-2620 | 53 | 57 | 41 |
| -26 | 1.5 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-2624 | 56 | 63 | 48 |
| -30 | 1.7 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-3020 | 63 | 63 | 48 |
| -30 | 1.7 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-3024 | 63 | 63 | 48 |
| -40 | 2.1 / 2-12 | -32 | 2-11 | 1JT9-4032 | 75 | 67 | 63 |
7. JIC-meetrilise hüdraulilise adapteri/1JM
| Lõng A | Niit B | Osa nr | L | E | F | H1 | ||
| Kriips | JIC | Kriips | meetriline | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -6 | 6x1.0 | 1JM-0706 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -8 | 8x1.0 | 1JM-0708 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -10 | 10x1.0 | 1JM-0710ES | 30 | 14 | 8 | 14 |
| -7 | 7 / 16-20 | -12 | 12x1.5 | 1JM-0712ES | 36 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -14 | 14x1.5 | 1JM-0714ES | 39 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -16 | 16x1.5 | 1JM-0716ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -10 | 10x1.0 | 1JM-0910ES | 31 | 14 | 8 | 17 |
| -9 | 9 / 16-18 | -12 | 12x1.5 | 1JM-0912ES | 36 | 14 | 12 | 17 |
| -9 | 9 / 16-18 | -14 | 14x1.5 | 1JM-0914ES | 36 | 14 | 12 | 19 |
| -9 | 9 / 16-18 | -16 | 16x1.5 | 1JM-0916ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -18 | 18x1.5 | 1JM-0918ES | 37 | 14 | 12 | 24 |
| -9 | 9 / 16-18 | -20 | 20x1.5 | 1JM-0920ES | 40 | 14 | 14 | 27 |
| -9 | 9 / 16-18 | -22 | 22x1.5 | 1JM-0922ES | 40 | 14 | 14 | 27 |
| -12 | 2003-4-16 | -12 | 12x1.5 | 1JM-1212ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -14 | 14x1.5 | 1JM-1214ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -16 | 16x1.5 | 1JM-1216ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -18 | 18x1.5 | 1JM-1218ES | 39 | 17 | 12 | 24 |
| -12 | 2003-4-16 | -20 | 20x1.5 | 1JM-1220ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -22 | 22x1.5 | 1JM-1222ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -26 | 26x1.5 | 1JM-1226ES | 47 | 17 | 16 | 32 |
| -14 | 2007-8-14 | -14 | 14x1.5 | 1JM-1414ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -16 | 16x1.5 | 1JM-1416ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -18 | 18x1.5 | 1JM-1418ES | 42 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -20 | 20x1.5 | 1JM-1420ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -22 | 22x1.5 | 1JM-1422ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -26 | 26x1.5 | 1JM-1426ES | 49 | 19 | 16 | 32 |
| -17 | 1.1 / 16-12 | -18 | 18x1.5 | 1JM-1718ES | 45 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -20 | 20x1.5 | 1JM-1720ES | 46 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -22 | 22x1.5 | 1JM-1722ES | 49 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -24 | 24x1.5 | 1JM-1724 | 48 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -26 | 26x1.5 | 1JM-1726ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727 | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -28 | 28x1.5 | 1JM-1728 | 52 | 23 | 16 | 32 |
| -17 | 1.1 / 16-12 | -30 | 30x2.0 | 1JM-1730 | 52 | 22 | 16 | 36 |
| -21 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-1733ES | 52 | 22 | 16 | 38 |
| -21 | 1.5 / 16-12 | -26 | 26x1.5 | 1JM-2126ES | 53 | 23 | 18 | 36 |
| -21 | 1.5 / 16-12 | -27 | 27x2.0 | 1JM-2127ES | 53 | 23 | 20 | 36 |
| -26 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-2133ES | 55 | 23 | 18 | 41 |
| -21 | 1.5 / 16-12 | -42 | 42x2.0 | 1JM-2142ES | 57 | 23 | 20 | 50 |
| -26 | 1.5 / 8-12 | -42 | 42x2.0 | 1JM-2642ES | 58 | 24 | 20 | 50 |
| -30 | 1.7 / 8-12 | -48 | 48x2.0 | 1JM-3048ES | 65 | 28 | 22 | 55 |
Detailid
JIC hüdraulilised liitmikud on oma arvukate eeliste tõttu tööstuses populaarseks muutunud. Need liitmikud pakuvad turvalist ja usaldusväärset ühendust, mis on hüdraulikasüsteemide jaoks hädavajalik. Siin on mõned JIC hüdrauliliste liitmike kasutamise peamised eelised:
1. Lekkekindel ühendus: JIC-liitmikud pakuvad tihedat tihendit, mis hoiab ära lekke, tagades hüdraulikasüsteemide tõhusa töö.
2. Lihtne paigaldus: JIC-liitmikud on kiired ja lihtsad paigaldada, säästes aega ja tööjõukulusid.
3. Vastupidav ja kauakestev: Need liitmikud on valmistatud kvaliteetsetest materjalidest, mis muudab need vastupidavaks ja kulumiskindlaks. See tagab liitmike pika kasutusea.
4. Mitmekülgsus: JIC-liitmikud ühilduvad paljude hüdraulikasüsteemide ja -seadmetega, muutes need mitmekülgseks valikuks mitmesuguste rakenduste jaoks.
5. Kõrge rõhuklass: JIC-liitmikud taluvad kõrget rõhku, mistõttu sobivad need kasutamiseks nõudlikes hüdraulikarakendustes.
6. Standardiseeritud disain: JIC-liitmikud järgivad standardiseeritud disaini, mis võimaldab vahetatavust ja ühilduvust teiste liitmikega, vähendades paigaldamise ajal vigade tekkimise võimalust.
Kokkuvõtteks võib öelda, et JIC hüdraulilised liitmikud pakuvad arvukalt eeliseid, mis teevad neist hüdraulikasüsteemide jaoks populaarse valiku. Nende lekkekindel ühendus, lihtne paigaldus, vastupidavus, mitmekülgsus, kõrge rõhukindlus ja standardiseeritud disain muudavad need ideaalseks valikuks mitmesuguste rakenduste jaoks.
